G114051, Class C
EN 50131-3, Grade 3, Class II
SES-EMA-RL-T2:2010-08

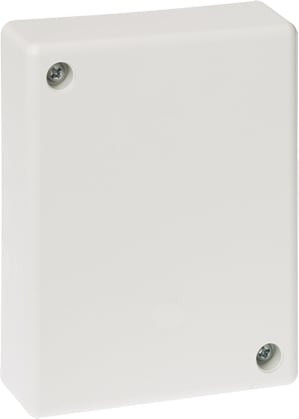

The DUO relay module can be used for extension of a DUO I/O Module BUS-2 /BUS-1 s. m.
The two relays can be activated via the outputs of the DUO I/O module or, alternatively, via any other control voltage with active low potential. For tamper detection a lid switch is intergrated.
- Both relays are activated via the DUO I/O module or an independent control voltage active low
- 2 relay outputs each having a potential-free switchover contact
- Wide range of switching capacities 5 V DC / 10 mA to 250 V AC / 5 A
- Tamper detection switch
| Rated operating voltage |
12 V DC |
| Rated operating voltage range |
9 V to 15 V DC |
| Current consumption at 12 V DC |
< 20 mA per actuated relay |
| Switching contacts |
2 switching contacts, potential free |
| Max. switching capacity |
250 V AC/ 8 A / 30 V DC/5 A |
| Minimum switching capacity |
5 V DC/10 mA |
| Type of protection EN 60529 |
IP40 |
| Environmental class as per VdS |
II |
| Operating temperature range |
-10 °C to + 55 °C |
| Storage temperature range |
-25 °C to + 70 °C |
| Dimensions (L x W x D) |
80 x 109 x 30 |
| Colour |
trafficwhite, similar to RAL 9016 |
