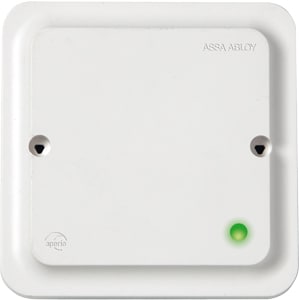

The HUB is used for communication between MB-Secure and the door components. It is equipped with screw terminals for RS-485 and has to be directly connected to the Module bus RS-485 of an MB-Secure. It manages the radio communication to the Aperio door components. A maximum of 8 door components can be connected to one RS-485 HUB. For each door one license option 059685 MB-Secure Option ASSA Aperio door is required.
- For connection to host system via RS-485 connection
- Allows to connect up to 8 Aperio® devices on a single hub
- Integrated antenna with the option to mount an external antenna
- Encrypted radio communication
- For standard electrical switch box
- LED for status visualisation
- Certified for CB, C-Tick, ETL, FCC, IC, ICASA
- Safety: FCC 47CFR Part 15 Subpart B and subsection C; IC RSS-210, EN ETSI 301 489-17 v2.2.1, EN ETSI 300 328 v1.8.1, EN 60950-1 2006 / A11: 2009 / A12: 2011 / A1: 2010 / AC: 2011, UL 294-2010
- One SMA connector for external antenna
| Dimensions (H x W x D) |
82 mm x 82 mm x 37 mm |
| Power supply #2 |
12 V DC |
| Radio frequency |
IEEE 802.15.4 (2400 to 2483,5 MHz) - 16 Kanäle (11-26) |
| Encryption |
AES 128 bits |
| Receiver sensitivity |
-100 dBm |
| Range |
Typical range 15-25 m, depending on structural conditions |
| Type of protection |
IP 20 |
| Operating temperature range |
5°C ... 35°C |
| Relative Humidity |
< 95% (non condensing) |
| Control - LED's |
LED (red/green/orange) |
Per each door one license ption 059685 MB-Secure Option ASSA Aperio Door is required.
1 hub with installation instructions
Wall-mounted housing
Fixing screws
