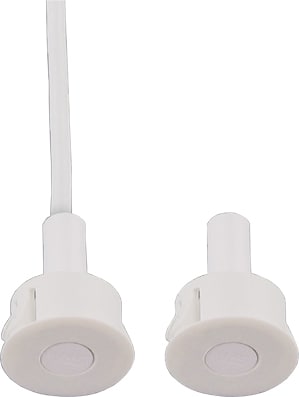

Sabotage-proofed recess mount magnetic contact for differential lines.
For front-end recess mounting into ferromagnetic materials.
VdS:G109046, Cl. C, EN 50131-2-6, Grade 3
| Switching voltage |
max. 100 V DC |
| Max. actuating direct current |
500 mA |
| Contact load |
6 W or 6 VA |
| Contact resistance |
max. 0,15 Ohm |
| Breakdown voltage |
>250 V |
| Cable length |
6 m (LIYY 4 x 0,14 mm²), LSA qualified |
| Type of protection EN 60529 |
IP67 |
| Environmental class as per VdS |
III (VdS 2110) |
| Housing material |
S-B oder A-B-S, flange PA6 GF 30 |
| Dimensions contact (DM x L) |
8 x 31 mm, recess mount flange drilling diameter 20 mm |
| Dimensions magnet (DM x L) |
6 x 19 mm, in sleeve 8 x 25 mm, recess mount flange drilling diameter 20 mm |
| Temperature range |
- 25 °C to + 70 °C |
| Colour |
white |
