G14022, Class C
EN 50131-3, Grade 3, Class II
SES-EMA-RL-T2:2010-08

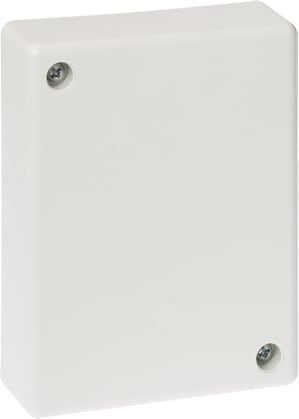

The 2-Relay 2-Input Module BUS-2 is intended for extension of a MB-Secure- or MB12/24/48/100/256 plus series intruder panel with control and power supply over BUS-2.
When operated at the MB-Secure panel two relays and two free programmable detector group inputs are available.
Also there is a compatibility mode provided for operation at MB12/24/48/100/256 panels as 5-output-module BUS-2. In this case the first two outputs control the relays, the inputs are not supported in compatibility mode.
- Operation at BUS-2
- 2 relays each with a potential-free changeover contact
- Wide switching capacity range (5 V DC/10 mA to 250 V AC/5 A)
- 2 detector group inputs free programmable (only MB-Secure)
- Detection range 4k - 14k and 20% / 30% / 40%
- Cover tamper and pry-off-tamper detection
- Firmware update over BUS-2 supported
- For MB12/24/48/100/256 plus this modul can be used on BUS-2 in a compatibility mode as a 5 Output Module (only relays)
| Rated operating voltage |
12 V DC |
| Current consumption at 12 V DC |
<4mA (Detector groups open) |
| Additional current consumption |
0,4 mA mA in addition per detector group terminatd with 12k1 |
| Detector zone inputs |
3,3 V DC, stabilized, short-circuit protected; monitoring range 12k1 ±40% |
| Current consumption relay |
20 mA at 12 V DC |
| Switching contact |
2x Changeover contact, potential free |
| Switching current |
max. 8 A / 250 V AC, 5 A / 30 V DC; min. 10 mA DC |
| Maximum switching capacity |
max. 2000 VA / 150 W |
| Switching voltage |
min. 5 V DC |
| Type of protection EN 60529 |
IP40 |
| Environmental class as per VdS |
II |
| Operating temperature range |
-10 °C to +55 °C |
| Storage temperature range |
-25 °C to +70 °C |
| Dimensions (W x H x D) |
85 x 109 x 30 mm |
| Colour |
traffic white (similar to RAL 9016) |
