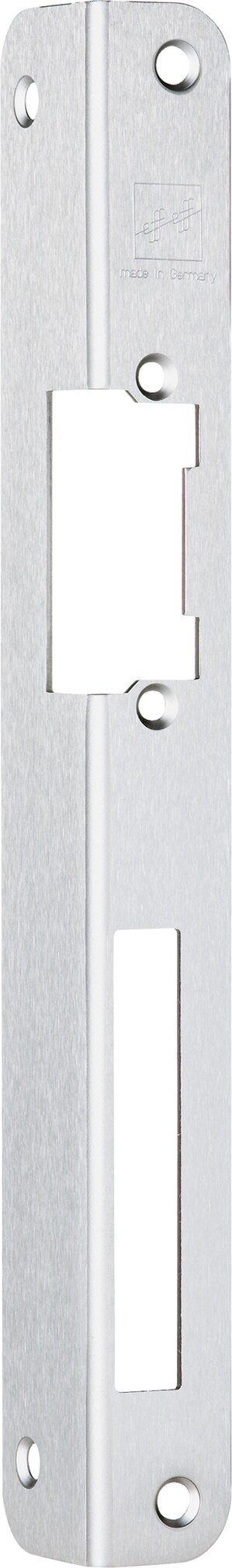

MEDIATOR lock, tubular frame version, 35 mm backset.
MEDIATOR is the perfect combination of a self-locking escape door lock with an electric door strike. All electric cable feeds are not connected to the lock but to the door strike. By means of this cabling work with high effort are no longer necessary at the door.
MEDIATOR
• Provides a high protection against burglary as the door is permanently locked. Approval as mechanic blocking element according to VdS class A. If required, the door can be held open via a key switch.
• Provides a safe escape route. Despite being permanently locked, the building can always be exited through the entrance door
• Provides great convenience. Locked building entrance doors can be easily opened from inside apartments. When the door closes, it is automatically locked. The door can also be permanently unlocked.
• Permanent release possible (e. g. clock controlled).
• Suitable for both tubular-frame and full-leaf doors.
Mounting:
Power source
Four wires are provided: two for power supply and two for electrical actuation.
Warning: If a power supply unit from a different manufacturer is used, ensure it is a model 12 V controlled D.C. voltage and a current output of at least 1 A.
Approvals
Approval for fire and smoke doors
The basic precondition for the use with fire or smoke doors iis a common test certificate of a construction supervision authority. The test certificate for the Mediator has the number 120003555.
The door manufacturer needs this common test certificate to test the door system. Only in combination with this the door manufacturer is able to test (door system test) and produce a fire or smoke door.
Please observe also country specific regulations outside of Germany (if existing).
For use with fire and smoke doors please note:
• The Mediator solution is only allowed to be built in by the door manufacturer during the production in combination with a corresponding door system inspection. A subsequent assembly at an existing fire or smoke door is not, or only with agreement of the door manufacturer, permitted. The Mediator doorstrike must have the "Ü"-identification mark (models as of production date 09.2008) and the fire protection module 519ZBFS (item no. 022711) must be used in addition. For a fire or smoke recognition an on-site fire detection sytem or a smoke detector with a relay output is to be used (see connection diagram of item no. 022711).
• For this application a permanent release of the Mediator system is not permitted.
Mediator has three different VdS approvals:
• Approval as locking monitoring device (bolt switching contact) VdS class C, G 109 032
• Approval as mechanic locking device VdS class A, M 109 314
• Approval as elektro mechanic actuating element for access control systems VdS class C, Z 109 001
Approval according to DIN EN 179 and DIN EN 1125
For escape door planning it is effective:
Before tender procedure there must be the decision if the door is planned to be an ecsape route or a panic door. The legal basis therfor is the valid building law with its corresponding special building regulations (valid in Germany, please observe local country specific regulations, if existing).
The decision for emergency or panic doors must be based upon the EN-norms 179 and 1125 with common validity within Europe.
The two norms distinguish between emergency exit (DIN EN 179) and panic exit (DIN EN 1125) and thus regulate the appropriate equipment of the door
DIN EN 179 (emergency exit locking device) Certificate of EC Conformity CPD-001.
DIN EN 1125 (panic locking device) Certificate of EC Conformity CPD-017.
- Self-locking: Dead bolt and latch are blocked; Advantage:
higher security
- Mechanical process control between cross and control latch
- Integrated panic function on the inside handle
- Changeover function for unlocking with a key from the
outside
- Low rear backset for tubular frame design: 15 mm
