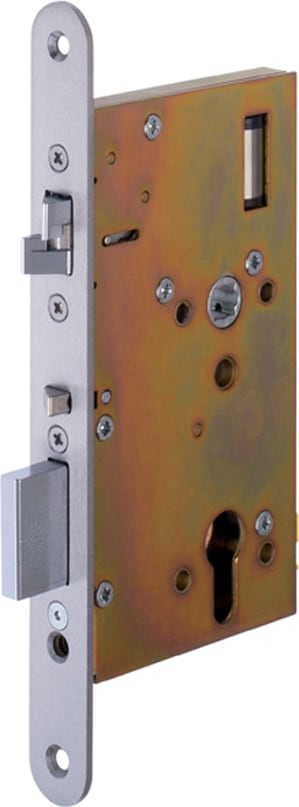

Motor lock for doors with bolt length 65 mm.
Approval:
EC Certificate of conformity 0432-CPD-0001 of the harmonised standard EN 179.
Classification: 376B1352AB/D.
EC Certificate of conformity 0432-CPD-0017 of the harmonised standard EN 1125.
Classification: 376B132 1/2 AB and 37601322BB.
The motor safety locks automatically lock the door after closing. Door locking cannot be forgotten, which provides the highest level of intrusion protection.
Motorised operation of latch and bolt, enabling the motor lock to be used in connection with motor-operated doors.
The emergency egress function guarantees a safe chance for escape, since the door can be opened from the inside at any time.
The control unit allows convenient remote controlling. The motor lock can easily be combined with access control systems and other door systems.
All motor safety locks are tested by the material testing institute (MPA) in Dortmund and approved for use in escape routes, fire doors and intrusion-resistant doors. Available bolt lengths: 35 mm and 65 mm
- Self-locking with cross latch bolt and lock
- Integrated anti-panic function via the internal strike
- Unlocking of latch bolt and lock by electric motor
- Electric control via external motor lock control item no. 022080.10
- Alternating function for unlocking from outside via key
- Automatic relocking
- For universal use
| Setting of locking |
max. 45° |
| Settings possibillities |
Panic side, DIN heading |
| Dead bolt throw |
20 mm |
| Follower |
9 mm |
| Backset |
65 mm |
| Distance |
72 mm (Euro-Zylinder) |
| Face plate (W x H x D) |
235 x 24 x 3 mm |
