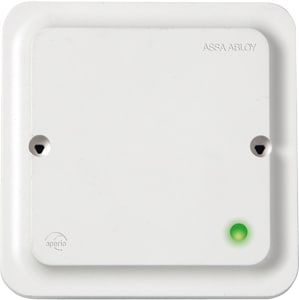

The HUB is used for communication between IQ MultiAccess / IQ SystemControl and the Aperio cylinders/escutcheons. It is equipped with an Ethernet socket and has to be connected via IP-Ethernet with the IQMA / IQSC workstation / server. It manages the radio communication to the Aperio door components. A maximum of 16 door components can be connected to one IP HUB (max. 256 per IQ CylinderHost). Power supply optional external or via PoE.
- For connection to IQMA/IQSC via IP/Ethernet connection
- Allows to connect up to 16 Aperio® devices on a single hub
- Integrated antenna with the option to mount an external antenna
- Encrypted radio communication
- TCP/IP communication encrypted using TLS 1.1/1.2
- Powered using Power over Ethernet (PoE) or external power supply
- For standard switch box
- LED for status visualisation
- Certified for CB, C-Tick, ETL, FCC, IC, ICASA
- Safety: FCC 47CFR Part 15 Subpart B and subsection C; IC RSS-210, EN ETSI 301 489-17 v2.2.1, EN ETSI 300 328 v1.8.1, EN 60950-1 2006 / A11: 2009 / A12: 2011 / A1: 2010 / AC: 2011, UL 294-2010
| Power supply #2 |
PoE: IEEE 802.3af compliant class 1 Powered device (PD), External Power supply: The power supply shall be able to deliver minimum 3.5 W. The power supply shall be 3 A over current protected. |
| Radio frequency |
IEEE 802.15.4 (2400 – 2483,5MHz), 16 channels (11-26) |
| Encryption |
AES 128 bits |
| Receiver sensitivity |
-100 dBm |
| Type of protection |
IP 20 |
| Operating temperature range |
5°C to 35°C |
| Relative Humidity |
< 95% (non-condensing) |
| Control - LED's |
LED (red/green/orange) |
| Dimensions (H x W x D) |
82 mm x 82 mm x 37 mm |
Requires IQMA6110 & IQMA6111
1 hub with installation instructions
Wall-mounted housing
Fixing screws
