Operation on BUS-2 or alternatively on BUS-1.
Approvals: G108039 (IDT), class C
According: EN 50131-2-4 (08/10), grade 3, environmental class II
SES-EMA-RL-T2:2010-08

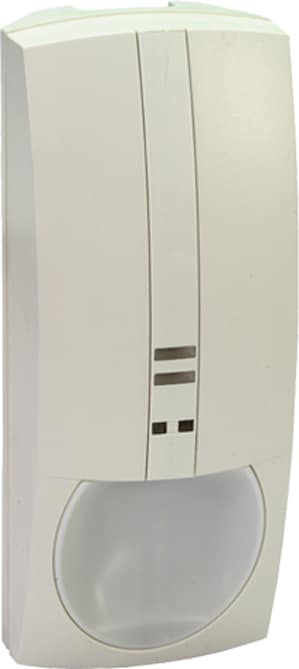

The Viewguard DUAL motion detectors have sensor systems working independently, PIR motion detector and microwave sensor.
The functional principle of the detectors is based on an intelligent connection of the two sensor systems. This connection makes the detectors particularly insensitive to air and heat turbulences, resulting in optimum alarm detection with extremely high false alarm immunity.
For continuous detection, the detectors are equipped with a high-quality mirror optics (area optics).
The detectors are suitable for intrusion detection control panels equipped with BUS-2 or BUS-1 technology or conventional connection technology and are available with or without anti-mask (AM) monitoring.
- Approvals / Conformity
- Viewguard DUAL AM BUS-2/BUS-1 or FAI VdS Class C (G108039 / G106078) EN 50131-1 and EN 50131-2-4: 2008-10, Grade 3
- Viewguard DUAL BUS-2/BUS-1 or FAI: VdS Class B (G108512 / G106518) EN 50131-1 and EN 50131-2-4: 2008-10, Grade 2
- Anti-mask monitoring AM (AM detectors only)
- Detects covering and spraying of the window, range up to 30 cm
- Microwave sensor
- Can be deactivated in the "unarmed" state
- LED display
- Unambiguous display of the operating state and detection display in the walk test mode via two LEDs
- FAI-logic
- The detector triggered first can be identified by means of the LED display
- Walk test function
- Easy method of performing a functional control and a detection range check
- Detector group input (BUS detectors only) for integrating contacts/potential-free detectors into the BUS-2 system (on 561-MB24/48/100 control panels) or BUS-1 system (on 561-MB24/48/100 and MB256 plus control panels), the detector group is not clearable
- Range of detection
- Range programmable in four steps
- Sensitivity of detection
- Sensitivity programmable in two steps.
- Storing / not storing fault/covering (AM detectors only)
- Storing: Message is stored until it is cleared
- Not storing: Message is reset automatically once the fault/covering has been eliminated
- Self-test (AM detectors only)
-Cyclic detector test for correct functioning
- Operating voltage monitoring
-Fault signal when operating voltage is too low
- Temperature measurement (BUS-2 on 561-MB12/24/48/100 only)
- Temperature alarm when ambient temperature is inadmissibly high/low
- Alarm thresholds programmable
- Tear-off protection / cover contact
- For mounting according to EN 50131-2-4 Grade 3
- Versatile mounting options (see figure)
- Inclined vertically downward, horizontally toward the left or right, corner mounting and
- Mounting on adjusting hinge or ball joint (accessories)
| Rated operating voltage |
12 V DC |
| Current consumption at 12 V DC |
6.6 mA BUS-2 / 9 mA BUS-1 / 4 mA LED |
| Range |
programmable |
| Volumetric optics |
22 zones, up to 15 m, opening angle 80° |
| Installation position |
vertical, optics down |
| Pan Travel |
Detector with adjustable hinge: ±20° horizontal; +4° to -8° vertical |
| Alarm display |
LED red |
| Fault display |
LED yellow |
| Type of protection EN 60529 |
IP30 |
| Environmental class as per VdS |
II |
| Operating temperature range |
-10 °C to +55 °C |
| Storage temperature range |
-25 °C to +70 °C |
| Dimensions without adjustable hinge (W x H x D) |
64 x 158 x 48 mm |
| Colour |
traffic white, similar to, RAL 9016 |
| Conformity to guidelines |
EN 50131-1 and EN 50131-2-4: 2008-10, grade 3 |
No other mirror optics (curtain- or long range optics) applicable for dual detectors.
The devices may only be marketed and operated in the following countries:
Germany, Austria, Switzerland, Liechtenstein, Poland, Slovakia, Czech Republic, Luxembourg, Turkey, Greece, Latvia, Hungary, Belgium, Netherlands, Bulgaria and Romania.
033390.17 Adjusting hinge, horizontal ±20°, vertical +4° to -8°, according to EN Grade 2
033588.17 Ball joint set for wall and corner mounting, horizontal ±45°, vertical ±20° not according to VdS and EN
033391.17 Seal, (20 per packaging unit)
